Sales · Installation · Service — Florida
CHIROPRACTIC X-RAY
SYSTEMS
Digital imagers, straight arms, and full-spine imaging systems built for chiropractic practices — from film-based value rooms to single-shot long-length DR. Every system is sold, installed, and serviced in Florida by X-Ray Repair & Sales, Inc.
Bennett · Americomp
Dedicated to quality, innovation, and the chiropractic profession — digital and film-based systems backed by the industry’s best 7-year warranty.
Direct Digital System
Bennett DC-1 System
Bennett's flagship film-based chiropractic system, built on high-frequency generator technology. Complete spinal imaging without repositioning the patient, with configurable options — including a tilting bucky for upper cervical work — to suit Diversified, Gonstead, Cox, Palmer Upper Cervical, and other techniques.
Generator HF-30B high-frequency, 500 mA / 600 mAs; internal self-diagnostics
Workflow H3-step anatomical programming: select
region, select view, enter patient measurement
console displays optimal mA, kVp, and mAs
Construction Solid steel tubestand and cassette structures; stainless steel bearings for tube/bucky
alignment
Digital Ready Compatible with most digital systems;
IMAGER upgrade converts to DICOM
compliant DR anytime
Warranty 7-yr X-ray system / 3-yr computer & monitor /
2-yr receptor
Direct Digital System
Bennett DC-3 System
High-frequency performance at an outstanding value — Bennett quality for practices that want dependable chiropractic imaging without the flagship price.
Generator HF-30 high-frequency; full 30 kW rating, 20
kHz technology
Workflow Simple two-point operation for fast exposure
technique setup
Construction Rugged counterbalanced tubestand and
wallstand
Digital Ready Compatible with most digital systems;
IMAGER upgrade converts to DICOM
compliant DR anytime
Warranty 7-year parts — the industry's best
Chiropractic X-Ray System
Americomp AC1 / AC2
Americomp’s proven chiropractic rooms — the affordable choice since 1987 and an outstanding value for start-ups and established practices alike. The AC1 accepts up to a 14″×17″ cassette in either direction; the AC2 takes a 14″×36″ cassette for single-exposure full-spine imaging. Both use a heavy-duty steel floor-wall or ceiling tubestand riding on stainless bearings, a full-travel wallstand that reaches standing knee and ankle exams, and 40″–72″ focal distances — with optional electric locks for fast positioning, and digital-ready so DR can be added any time.
AC1 Up to 14″×17″ cassette, either orientation
AC2 Up to 14″×36″ cassette — full-spine imaging
Tubestand Floor-wall or ceiling, heavy-duty steel, 40″–72″ FFD, angulation dial
Wallstand Full vertical travel (standing knee/ankle), manual or electric locks
MedicaTech USA
Straight arms, universal arms, full rooms, and DR panels — all running MedicaTech’s Voyance® acquisition software, with single-shot full-spine imaging via the LLD detector.
Motorized Straight Arm
MasterRad SA1000 Straight Arm
A compact, fully motorized digital straight-arm system that fits rooms as small as 10×10 feet — a cost-effective single-panel answer for chiropractors, urgent care, doctors’ offices, and orthopedic practices. Any view is one push of a button: positions are pre-programmed, arm movement is fully motorized, and the system arrives integrated with DR software, generator, and your choice of panel.
Room size Installs in rooms as compact as 10 × 10 ft
Positioning Pre-programmed positions; fully motorized
arm movement
Integration DR software + generator integrated;
preconfigured panel choice
Collimator 150 kVp max, 48×48 cm field @ 100 cm SID,
LED light >160 Lux
Universal Arm System

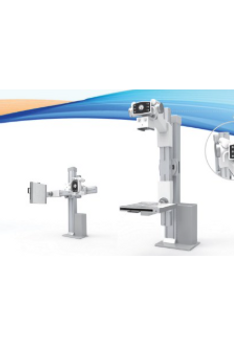

MasterRad URM 1100 U-Arm
The best choice for limited space and budget: a single-panel, multi-purpose universal arm that covers the entire range of radiographic exams from one ergonomic stand. The motorized universal stand and basic mobile table complete the room, and RAPS — the remote auto-positioning system — drives fast, accurate image acquisition.
Configuration Motorized universal stand + mobile table + workstation
Positioning RAPS remote auto-positioning support
Options AEC ion chamber, DAP interface, touch-screen generator console
Manual System
MasterRad MX30 Full Manual System
The economical entry to the MasterRad line: a full-manual wall stand and tube stand configuration from MedicaTech’s fully programmable, customizable integrated radiology platform — a straightforward, durable room for practices that don’t need motorization.
Floor-Mount X-Ray Room
MasterRad Floor Mount 300 mA
A complete floor-mounted room built around the CMP 200 32 kW high-frequency generator: 8-foot floor rails, a tube stand with a 7″ LCD touch readout for SID and rotation, a chest stand that takes 17″×17″ and 14″×17″ panels, and a non-elevating table rated to 250 kg. Anatomical programming runs from 1,024 techniques on the membrane console to 20,000+ on the touchscreen, with auto tube calibration, tomography mode, and DR interfaces for Canon, Vieworks, Konica Minolta, and more.
Generator CMP 200, 32 kW HF; 40–125 kV, 10–400 mA, 1
ms–6.3 s
Tube stand 8-ft rails, 1,550 mm vertical travel, ±90°
rotation, 7″ LCD readout
Table 2,133 × 787 mm top, floating travel, 250 kg
patient rating
Tube Toshiba Rotanode E7252X, 0.6/1.2 focal spots,
300 kHU
Chest stand 17″×17″ / 14″×17″ panels, 103-line grid
Long-Length Detector

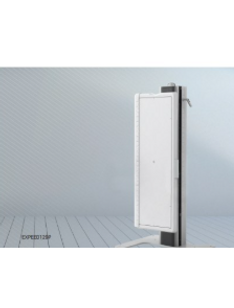

LLD Long Length Detector
Full-spine imaging in a single shot: the DRTECH × MedicaTech LLD (EXPEED129P) captures the entire long-length study in one exposure — no multi-shot stitching, no motion artifacts between frames — which makes it a natural fit for chiropractic scoliosis and posture work. The dedicated wall stand pairs a tall 490 × 1,368 mm bucky with a fixed grid at a 2,900 mm SID.
Capture Single-shot long-length image (EXPEED129P
detector)
Bucky 490 × 1,368 mm, fixed grid
Stand 1,632 mm vertical, 2,900 mm SID
Wireless DR Panel
DR Tech 14″ × 17″ Wireless Panel
A cassette-size wireless CsI flat-panel detector (model EVS 3643W) that drops into existing bucky trays to convert a film or CR room to direct digital, paired with Voyance acquisition software and PACS.
Active area 358 × 430 mm (14″ × 17″)
Resolution 2,560 × 3,072 @ 140 µm pixel pitch, 16-bit
Weight 2.98 kg (386 × 460 × 15 mm)
Sync / data Lossless AED/AWC, Gigabit Ethernet
DR Panel Series
MasterX™ 800 Series
MedicaTech’s newest DR line: lightweight wireless and tethered CsI panels with built-in temperature and gravity sensors that self-monitor even while powered off. The 801C and glassless 802C are 2.7 kg 14″×17″ wireless panels rated IPX6 for washdown, with 8-hour battery life; the 803C is a 17″×17″ tethered panel.
801C / 802C 14″×17″ wireless, 2,500×3,052+ res, 2.7 kg,
IPX6, 8-hr battery
803C 17″×17″ tethered CsI, 3,072×3,072, 3.4 kg
Housing Mg-Al alloy, 70 cm drop rating, 300 kg face
load
Trigger AED mode (803C adds software sync)
Premium Wired DR Panel
MasterX™ Tethered IGZO Series
Premium wired panels (EXPD 3643P / 4343P) built on DRTECH’s QX Platform: IGZO transistor arrays with 10× faster electron mobility than conventional a-Si, plus the FOCUS scintillator, delivering 2.5× higher DQE and 30%+ dose reduction. A single LAN cable with PoE handles both data and power, and high frame rates support multi-frame use like tomosynthesis.
Models EXPD 3643P (14″×17″, 3.5 kg) / EXPD 4343P
(17″×17″, 4.3 kg)
Panel tech IGZO TFT + FOCUS CsI:Tl — 2.5× DQE, 30%+
dose reduction
Interface Single LAN cable (PoE) — no interface box
Processing TRUVIEW® ART + DEPAI™ AI enhancement
Premium Wireless DR Panel
MasterX™ Wireless IGZO Series
The wireless side of the QX Platform (EVS 3643WP / 4343WP): the same IGZO + FOCUS low-dose imaging in a 2.9–3.4 kg wireless panel with dual-band Wi-Fi, built-in image memory so nothing is lost to dropouts, IP54 fluid protection, and 24-hour operation via the wireless power charging system
Models EVS 3643WP (2.9 kg) / EVS 4343WP (3.4 kg)
Wireless 2.5 & 5 GHz Wi-Fi, built-in memory, USB-C
interface
Protection IP54 dust & fluid resistant
Power 24-hr wireless power charging system (WPCS)
Detector Technology Platform
QX Platform — Premium Series
The technology platform behind MedicaTech’s premium detectors, combining DRTECH-designed IGZO arrays, the FOCUS scintillator, ultra low-noise electronics, and two-stage TRUVIEW® ART + DEPAI™ AI image processing — the result is 2.5× higher DQE, 2.5× higher visibility, and 30% or more dose reduction versus less-advanced DR.
RadmediX
Innovative digital radiology from Ohio
Advanced chiropractic DR systems - the CDR and Acuity
- the Acuity line spans chiropractic-specific straight arms, semi-automated DR
rooms, portable detectors, and cassette-tray retrofit panels.
Chiropractic Straight Arm
Acuity CDR
RadmediX calls it the first chiropractic X-ray advancement in decades: a compact, fully counterbalanced straight arm designed specifically for chiropractic care. Magnetic-lock brakes on the handle raise and lower the whole system effortlessly while tube and bucky stay in constant alignment for head-to-toe standing exams, and the fully integrated software pre-selects X-ray techniques from the anatomical region. The ultra-small footprint fits virtually any room and dramatically cuts installation downtime.
Generator 40 kW, fully software-integrated with
anatomical pre-selection
Positioning Magnetic-lock handle control; constant tube–
bucky alignment, skull to lower extremities
Collimator Dual-laser rotating LED; fixed 40″ SID; optional
AEC
Bucky Enclosed, with removable grid
Semi-Automated DR System
Acuity SDR+ / SDR
Digital X-ray just got a lot easier: up to 60 customized, pre-programmed positions of stand height, orientation, and SID drive maximum throughput, all run from an integrated 10″ touchscreen console. The enclosed flat-panel detector images all anatomy at industry-leading low doses, Bucky-side controls keep the technologist at the patient, and the whole system fits under an 8-foot ceiling. Pairs with AccuVueCloud PACS for secure anywhere-access to studies; the standard SDR offers the same imaging at a budget-friendly price without the touchscreen.
Positioning Up to 60 semi-automatic presets; motorized
SID
Console 10″ touchscreen; integrated HF generator with
APR
Options Mobile table (516 lb rating), AEC, dual-laser LED collimator; AccuVueCloud PACS
Footprint Smallest in class — full function within an 8’
ceiling
Portable DR Detectors
Acuity DR (1012 / 1417 / 1717)
Smart portability from RadmediX: wireless CsI or gadolinium panels for medical, veterinary, and chiropractic use — the 4.1 lb Acuity 1012 and 6.5 lb Acuity 1417 wireless, plus the 1717 wired for fixed rooms. Combine a panel with the PCP portable console tablet and images acquire instantly with no control box, viewable on tablets and phones for truly mobile imaging; smart-switch technology connects one detector to two workstations.
Panels 1012 (10″×12″, 4.1 lb wireless), 1417 (14″×17″, 6.5 lb wireless), 1717 (wired)
Scintillator Direct-deposit CsI or Gad options
Software AccuVue Med acquisition
Mobility PCP tablet console — instant digital, mobile-device viewing
Digital Retrofit Panel
Acuity 1717 CsI
No rotation, no integration, simple function: a 17″×17″ direct-deposit CsI panel that slides into any standard cassette tray for an instant DR upgrade of your existing room. Automatic Exposure Detection syncs it to any generator with no wiring into the system, and the direct-deposit scintillator minimizes light dispersion for sharper images than conventional CsI or GOS construction.
Imaging area 430 × 430 mm, 3072 × 3072 px @ 140 µm, min
3.5 lp/mm
Speed Image acquisition & transfer under 3 s
Integration AED — works with any X-ray system; fits
standard cassette trays
Build 15 mm slim cassette size, 4.5 kg, Gigabit Ethernet
