Summit Industries · InnoVet
InnoVet has built veterinary-specific X-ray systems since 1991 and backs them with a 7-year limited parts warranty.
Table Radiographic System
InnoVet Select HF
A high-frequency radiographic room designed specifically for veterinary practices, pairing a 30 kW generator with an enclosed, integrated table and built-in animal restraint. Digital-ready and compatible with most DR/CR systems, backed by InnoVet’s 7-year limited parts warranty.
Generator 30 kW high-frequency (20 kHz),
two-point technique (kVp, mAs)
kVp range 40–125 in 1 kV steps; mA stations 50s / 100s /
100L / 300L
Table Enclosed 53″ × 24″ stationary top, 8:1 grid
(103 LPI), restraint device
Options 500 mA upgrade, 2-way or 4-way float-top
tables, anatomical programming
MedicaTech USA
American-made digital X-ray rooms, portables, and DR panels — all running MedicaTech’s Voyance® acquisition software for a consistent workflow across every device.
Digital X-Ray Room
ClearRay™ 1700
A lightweight, feature-rich veterinary X-ray room with an open-floor design that adapts to nearly any clinic layout. The large 4-way float-top table positions patients easily by foot control, and the whole system runs on MedicaTech’s Voyance acquisition software with the MasterX 17″×17″ tethered detector.
Table 4-way float top, 31″ × 60″, 500 lb capacity,
electromagnetic brakes
Design Open floor platform, easy cleaning; tube column
fits low ceilings
Positioning One-touch foot control
Software Voyance® — DICOM 3.0, auto stitching/
cropping, CPI & DRGEM generator integration
Digital X-Ray Room · Elevating Table
ClearRay™ 2000
The only 4-way elevating table on the market — the tabletop raises from 18″ to 31″ off the floor, so large or injured animals load at a low height and lift to working position without staff strain. Single LAN-cable connection, foot-control positioning, and the same Voyance software platform as the 1700.
Elevation 18″–31″ table height, 4-way float
Braking Electromagnetic table braking
Connection Single LAN cable — no separate power supply
Software Voyance® with MasterX 17″×17″ tethered
detector
Wireless DR Panel
DR Tech 14″ × 17″ Wireless Panel
A cassette-size wireless CsI flat-panel detector (model EVS 3643W) that drops into existing bucky trays to convert a film or CR room to direct digital, paired with Voyance acquisition software and PACS.
Active area 358 × 430 mm (14″ × 17″)
Resolution 2,560 × 3,072 @ 140 µm pixel pitch, 16-bit
Weight 2.98 kg (386 × 460 × 15 mm)
Sync / data Lossless AED/AWC, Gigabit Ethernet
DR Panel Family

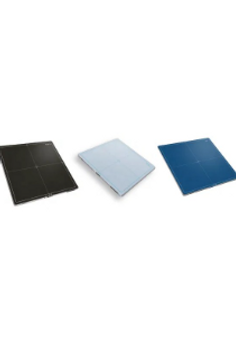

DRTECH DR Vet — Wireless & Tethered
DRTECH’s veterinary panel line in 10″×12″, 14″×17″, and 17″×17″ sizes, wired or wireless. FOCUS scintillator technology cuts image noise for lower-dose exams, an OLED edge display shows panel status at a glance, and the wireless power charging system keeps panels running around the clock without battery swaps.
Sizes 10″×12″, 14″×17″, 17″×17″ — wired & wireless
Imaging FOCUS CsI scintillator, TRUEVIEW® ART processing
Wireless Reliable 5 GHz Wi-Fi, built-in memory so no
image is lost
Durability Dust & waterproof housing; wireless power
charging
Portable Digital X-Ray
MasterRad™ Ultra-Portable Digital
A compact, splash-proof portable X-ray unit built for exams anywhere — exam rooms, house calls, or the field. Over 300 preset technique groups speed up exposures, and a full battery charge delivers 200+ exposures at full power (400+ at average power), still exposing normally below 20% charge.
Presets 300+ technique parameter groups
Battery 200+ full-power / 400+ average-power
exposures per charge
Design Multi-level leak-proof, low-dose, splash-resistant
Software Voyance® acquisition, DICOM 3.0
Portable Digital X-Ray · Vet Edition
MasterRad™ Ultra-Portable VET
The veterinary edition of the MasterRad Ultra-Portable — the same agile, battery-powered imaging platform configured for veterinary workflows and paired with wireless DRTECH panels for a complete field-ready digital kit.
DR Panel Series
MasterX™ 800 Series
MedicaTech’s newest DR line: lightweight wireless and tethered CsI panels with built-in temperature and gravity sensors that self-monitor even while powered off. The 801C and glassless 802C are 2.7 kg 14″×17″ wireless panels rated IPX6 for washdown, with 8-hour battery life; the 803C is a 17″×17″ tethered panel.
801C / 802C 14″×17″ wireless, 2,500×3,052+ res, 2.7 kg,
IPX6, 8-hr battery
803C 17″×17″ tethered CsI, 3,072×3,072, 3.4 kg
Housing Mg-Al alloy, 70 cm drop rating, 300 kg face load
Trigger AED mode (803C adds software sync)
Premium Wired DR Panel
MasterX™ Tethered IGZO Series
Premium wired panels (EXPD 3643P / 4343P) built on DRTECH’s QX Platform: IGZO transistor arrays with 10× faster electron mobility than conventional a-Si, plus the FOCUS scintillator, delivering 2.5× higher DQE and 30%+ dose reduction. A single LAN cable with PoE handles both data and power, and high frame rates support multi-frame use like tomosynthesis.
Models EXPD 3643P (14″×17″, 3.5 kg) / EXPD 4343P
(17″×17″, 4.3 kg)
Panel tech IGZO TFT + FOCUS CsI:Tl — 2.5× DQE, 30%+
dose reduction
Interface Single LAN cable (PoE) — no interface box
Processing TRUVIEW® ART + DEPAI™ AI enhancement
Premium Wireless DR Panel
MasterX™ Wireless IGZO Series
The wireless side of the QX Platform (EVS 3643WP / 4343WP): the same IGZO + FOCUS low-dose imaging in a 2.9–3.4 kg wireless panel with dual-band Wi-Fi, built-in image memory so nothing is lost to dropouts, IP54 fluid protection, and 24-hour operation via the wireless power charging system.
Models EVS 3643WP (2.9 kg) / EVS 4343WP (3.4 kg)
Wireless 2.5 & 5 GHz Wi-Fi, built-in memory, USB-C
interface
Protection IP54 dust & fluid resistant
Power 24-hr wireless power charging system (WPCS)
Detector Technology Platform
QX Platform — Premium Series
The technology platform behind MedicaTech’s premium detectors, combining DRTECH-designed IGZO arrays, the FOCUS scintillator, ultra low-noise electronics, and two-stage TRUVIEW® ART + DEPAI™ AI image processing — the result is 2.5× higher DQE, 2.5× higher visibility, and 30% or more dose reduction versus less-advanced DR.
VetRay by Sedecal
Veterinary-specific systems from the world’s largest X-ray equipment manufacturer — analog and digital rooms, elevating tables, portables, large-animal mobiles, and zoo/exotic solutions. Simple. Dependable. Smart.
Digital X-Ray System
Digital DX-V (DX-V17 / DX-V)
VetRay’s complete digital system built around Vivix detectors, from the world’s largest X-ray equipment manufacturer. The fixed Vivix 17″×17″ covers the largest breeds with no need to stop and rotate — just position and expose — while the removable, rotatable 14″×17″ supports horizontal-beam, weight-bearing, oblique, and cross-table exams when paired with the Premium Vet system. Available as a complete system or as a tethered/wireless detector upgrade to your existing room
Vivix 17″×17″ Largest coverage area — image big breeds
without rotating
Vivix 14″×17″ Removable & rotatable; horizontal beam,
weight-bearing, oblique, cross-table
Configurations Complete system, or digital upgrade of your
existing X-ray
Digital X-Ray System
SDX Digital
A streamlined VetRay digital room built around the Vivix 17″×17″ detector — the largest coverage area available, so even giant breeds image in a single position-and-expose workflow. Available as a complete system or a detector upgrade to an existing room.
Detector Vivix 17″×17″ — largest coverage, no rotation
needed
Analog X-Ray Room
Standard Vet
VetRay’s workhorse analog room: a compact 32 kW / 400 mA high-frequency generator with a membrane console and Anatomical Programmed Radiography, heavy-gauge steel construction, and a 5-foot 4-way float-top table. Hands-free collimator light control, variable SID for tabletop and cassette-tray imaging, rotating tube head, and X-ray tube rotor brake round out the platform.
Generator 32 kW / 400 mA compact HF, 125 kVp, 500
mAs, APR
Table 5-ft 4-way float top, foot-treadle table locks,
stainless cassette tray
Tube 1.0 / 2.0 focal spots, rotating anode, 140,000 HU,
16° target angle
Power 208/230/240 VAC single phase; 3-phase &
battery generator options
Analog X-Ray Room · Touch Screen
Standard Vet
The Standard Vet platform upgraded with a 15″ heads-up touch-screen console: Anatomical Program Radiography at a tap, plus patient log files that eliminate hand-written paper logs. Same 32 kW / 400 mA generator, hands-free collimator light, and 5-foot 4-way float-top table.
Console 15″ touch screen, APR, heads-up mounting,
patient logs
Generator 32 kW / 400 mA compact HF
Table 5-ft 4-way float top; variable SID, rotating tube
head, rotor brake
Premium X-Ray Room
Premium Vet TS
The premium choice in veterinary-specific X-ray: every feature of the Standard Vet TS — touch-screen console, APR, patient logs, 32 kW / 400 mA generator — plus horizontal-beam, cross-table, and off-table imaging capability for standing and weight-bearing studies.
Adds over Standard Horizontal beam, cross-table, and off-table
imaging
Console 15″ touch screen with APR and patient log files
Generator 32 kW / 400 mA compact HF, 208/230/240
VAC single phase
Elevating Table System
EleVet / EliteVet
VetRay’s elevating-table line: easy, stress-free positioning for larger or injured animals, with hands-free table lock release and a 15″ Single Touch II console. Choose a variable tube stand with floor track or a fixed tube stand, both with a 5-foot 4-way float top, variable SID, rotating tube head, and rotor brake.
Console 15″ Single Touch II
Configurations Variable tube stand (floor track) or fixed tube
stand
Table 5-ft 4-way float top, hands-free lock release
Digital Retrofit Package
Digital Upgrade
Convert the X-ray machine you already own to digital. The VIVIX HD detector — 17″×17″ so you never rotate for the largest breeds, or 14″×17″ to keep full film-style flexibility — acquires images in seconds with Advanced Veterinary Image Processing. The package is turnkey: acquisition computer, 24″ monitor, QXLink PACS workstation, ten viewing licenses, and long warranties.
Detector VIVIX HD 17″×17″ or 14″×17″; CsI or gadolinium
scintillator
Image 3.5 lp/mm, 16-bit / 65,536 grays, 4.0 s cycle time
Included Acquisition PC + wall mount, 2 MP 24″ monitor,
QXLink PACS, 10 licenses
Warranty 5-yr parts & labor on PC, 5-yr on detector;
DICOM & MyVet Cloud sharing
Flexible Use Radiography
FUR System (FUR-1 / FUR-2)
Radiography anywhere in your facility: the FUR system’s ICX cart travels with the detector so busy companion or mixed practices can image in radiology, surgery, trauma, treatment, exam rooms — even the parking lot. FUR-1 is the cost-effective single-detector setup that floats between rooms; FUR-2 adds a dedicated radiology room and panel for simultaneous imaging on busy days.
FUR-1 One detector + traveling ICX cart, floats
between areas
FUR-2 Dedicated radiology room + ICX cart +
dedicated panel, simultaneous capacity
Portable X-Ray
Dragon X SPSL-HF 4.0 / 8.0
Portable and powerful: a wheeled high-frequency unit with a multi-positioning arm, LED collimator, and laser indicator, driven by an APR module through your choice of overlay or touch-screen console.
Generator 4 or 8 kW HF — 125 kVp, 100 mA, 250 mAs
Positioning Multi-positioning arm, laser indicator, LED
collimator
Console Overlay or touch screen, APR module
Modular System
STX Series
Build the system you need: an extremely flexible, cost-effective line for exotic, small-animal, and mixed practices — and for clinics where space is tight, STX fits. The STX-100 table lets you keep using your existing portable generator and digital system, or add a 4 or 8 kW generator, then grow with a tethered or wireless detector.
STX-100 Full-function table sized for existing portable
generators
Generator options Add 4 kW or 8 kW X-ray generator
Detectors Expand with tethered or wireless mobile
digital detectors
Large-Animal Mobile System
MobileVet MX-2 (Analog & Digital)
A high-frequency mobile system from VetRay’s Large Animal Division with the power to image any size patient — equine, zoo, and farm work included. The digital version pairs a 50 kW generator with an onboard PC and 17″ touch screen, your choice of Canon or Vieworks wireless detector, secondary drive controls on the tube handle, and dual battery systems that separate exposure power from drive power.
Generator 50 kW, 40–150 kVp, 10–500 mA (18 stations),
0.001–10 s
Reach 49.2″ tube arm, ±315° column rotation, 80.7″
max SID to floor
Mobility Narrow-width chassis, frontal anti-collision,
1,312 lb
Detector Canon or Vieworks wireless
Zoo & Exotic Solutions
Zoo & Exotic X-Ray Systems
Custom X-ray solutions for zoo and exotic-animal medicine, from full radiographic rooms to portable field systems in rugged travel cases — VetRay builds the configuration around the species and settings you work with.
Cloud Imaging Software
VetRay Cloud
Web-based storage that lets you view and share studies from any browser on any device — PC, Mac, phone, or tablet — while serving as a second backup of your images. STAY™ handles automatic cloud backup and archiving; FETCH™ is the remote viewing program for reviewing images across platforms, and studies can be emailed to a client or specialist directly.
STAY™ Automatic web-based cloud backup & archive
FETCH™ Remote multi-platform image viewing
Sharing Email studies to clients or specialists; any web
enabled device
Generator Series
Capacitor Assisted Series
Sedecal’s capacitor-assisted line of high-frequency X-ray generators, offered with multiple console styles to power radiographic rooms across a range of installation requirements.
Fujifilm
DR detectors and imaging consoles trusted in human medicine, adapted for veterinary workflows.
Veterinary X-Ray Room
VXR System
Fujifilm’s veterinary-dedicated room, designed from practice feedback with the generator hardware hidden inside the table so it installs almost anywhere — the capacitor-assisted 32 kW option even runs on standard 100–120 V electrical. Touchscreen controls on the tube head populate user-programmable anatomical techniques, the 4-way floating tabletop includes a urine trap, and the bucky accepts any standard 14″×17″ or 17″×17″ cassette or detector — including what you already own. Optional Virtual Grid processing cuts dose up to 50% on large-animal exams.
Generator 32 kW (220–240 V) or capacitor-assisted 32 kW (100–120 V), single phase
Output 400 mA @ 80 kV, 320 mA @ 100 kV, 250 mA @
125 kV; 0.001–10 s timer
Processing Virtual Grid (up to 50% dose reduction) &
Dynamic Visualization II options
Table 59″ × 28.19″ 4-way floating top, urine trap, 17″×17″ bucky, 10:1 removable grid
Processing Virtual Grid (up to 50% dose reduction) &
Dynamic Visualization II options
Glassless Wireless DR Panel
FDR D-EVO III (G35 / G43)
The world’s first glass-free DR detector — Fujifilm replaced the fragile glass TFT layer with flexible film, making the 14″×17″ G35 just 1.8 kg (40% lighter than the original D-EVO) and far more shock-resistant. Patented ISS capture samples the signal on the irradiated side for sharper images at lower dose, a built-in Memory Mode stores 100 images for detector-only field use, SmartSwitch auto-detects exposures from any generator, and the Hydro Ag antibacterial coating plus IPX6/IP5X sealing stand up to clinic cleaning.
Models G35 14″×17″ (1.8 kg) / G43 17″×17″ (2.1 kg), GOS
scintillator
Image 150 µm pixel pitch, 16-bit, preview under 2 s
Field use Memory Mode (100 images), SmartSwitch
auto-detection, 90-second battery swap
Protection IPX6 fluid + IP5X dust rating, Hydro Ag
antibacterial coating, Mg-Li alloy frame
DR Panel Family
FDR ES (14G / 17G / 14C / 17C)
Fujifilm’s value line for converting any X-ray room to digital: 14″×17″ and 17″×17″ panels in your choice of GOS or CsI scintillator, tethered or wireless. The same patented ISS capture technology delivers Fujifilm image quality at lower dose, previews land in 2 seconds with a 7.5–9 second cycle, and the 17″×17″ format shoots portrait and landscape without ever rotating in the bucky. Single-handed battery swaps have you imaging again in 30 seconds.
Sizes 14″×17″ & 17″×17″, GOS (G) or CsI (C) scintillator
Speed 2 s preview, 7.5–9 s cycle time
Image 150 µm, 16-bit; Virtual Grid option for grid-free
exams
Build Carbon fiber frame, IPX3, 600 lb distributed load
Acquisition Console
FDX Console
The acquisition workstation that drives Fujifilm’s FDR detector families, pairing a streamlined exam workflow with the image processing that makes the panels shine: Virtual Grid scatter correction for grid-free, lower-dose exams and Dynamic Visualization II intelligent anatomic processing, with wired network connectivity into your PACS.
Drives FDR ES and FDR D-EVO detector families
Processing Virtual Grid & Dynamic Visualization II
Network Wired Ethernet to PACS/DICOM
Poskom Portable
Lightweight portable X-ray generators and stands for mobile and in-clinic veterinary imaging.
Portable X-Ray Line
PXP Series Portables
Models PXP-16HF, PXP-20HF Plus, PXP-40HF, PXP
60HF, PXP-100CA
Poskom’s high-frequency portable line for veterinary use, spanning five models from the 5.3 kg ultra-light PXP-16HF up to the 5 kW PXP-100CA — so there’s a unit matched to everything from exotics to equine work. Mid-range models like the PXP-40HF pair 2.4 kW of output with a 40–100 kV range at just 12.8 kg, with optional dual laser pointers for aiming.'
Output 1.2 – 5 kW max; kV ranges from 40–125 across
the line
Weight 5.3 kg (16HF) to 20.4 kg (100CA)
Power 100–120 / 200–240 V line operation; optional
dual laser pointer
Hybrid Battery Portable
VET-20BT (+ PXM Hybrid Series)
Power Hybrid — line voltage or battery; max 300
exposures per charge
Poskom’s hybrid portable runs on line voltage or battery power interchangeably — and its high-capacity battery delivers up to 300 exposures on a single charge, with simple swap-out replacement in the field. The VET-20BT is the veterinary flagship of the hybrid PXM series, which also includes the PXM-20BT and the more poerful PXM-40BT.
VET-20BT 1.6 kW, 50–80 kV, 6.8 kg, 3.5-hr charge, 15 APR
presets
PXM-20BT / 40BT 1.6 kW / 2.4 kW, 40–100 kV, 10.6 / 14 kg
Options PC operation program, car-jack charging,
RF wireless communication
Mobile Stands
MS-1900 & MS-1500 Stands
MS-1900 83 lb total w/ generator; folds flat; 13″ wheels
Wheeled stands that turn a Poskom portable into a complete mobile X-ray system. The MS-1900 folds flat for transport and weighs just 83 pounds total including the portable generator, with a 40″ horizontal arm and 13″ wheels for moving between stalls or rooms — usable for both veterinary and human medical work. The MS-1500 is the counterbalanced upright stand alternative.
Reach Vertical SID 68″–80″, 40″ horizontal arm,
height to 86″
Footprint 44″ L × 22″ W
Compatibility Vet and human use; fits Poskom portable
generators
Table & Accessories
VT-20 Vet Table & Accessories
Table top 24″ W × 50″ L, detachable
The VT-20 small-animal radiography table completes a portable setup: a compact, slim table with a detachable 24″ × 50″ top, two-way horizontal tube-stand travel, and a vertical arm adjustable up to 40″. The cassette tray takes 8″×10″ through 14″×17″, with a 17″×17″ stationary grid — and a fitted portable case protects the generator on the road.
Tube stand ±10.2″ (±29 cm) horizontal travel; vertical arm to
40″
Imaging Cassette tray 8″×10″–14″×17″; 17″×17″
stationary grid
Accessories Fitted portable travel case for generators
MinXray
Field-proven portable generators for equine, mixed, and mobile practices — built for demanding conditions for over 50 years.
Portable X-Ray Unit
MinXray HF100+ Ultra Light
Output 40–20 mA @ 40–100 kVDC
MinXray’s most powerful veterinary unit — the extra boost in output for imaging cervical spines and larger warmblood breeds, in a 24-pound high-frequency portable built for the toughest field situations. Five programmable exposure techniques, dual adjustable laser pointers, RJ45 DR interface, and a 5-year limited warranty; also available as part of the SA100+HF system for combined equine and small-animal imaging.
Timer 0.01–2.0 sec, 61 steps
Tube Toshiba D-124k, 1.2 mm focal spot
Size & weight 9.45 × 7.72 × 14.37 in — 24.2 lb (11 kg)
Power 110/240 V, 50/60 Hz, automatic line
adjustment
Portable X-Ray Unit
MinXray HF8020
Output 20–16 mA @ 50–80 kVDC
A favorite among equine practitioners: at just 14.5 pounds, the HF8020 is the featherweight of the line, and its HighBurst™ design shortens exposure times to cut the chance of motion artifacts on field radiographs. Adjustable dual laser pointers, five memory stations for stored techniques, and compatibility with all digital imaging systems.
Weight 14.5 lb (6.56 kg)
Features HighBurst™ short exposures, dual lasers, 5
memory stations
Warranty 5-year limited
Rugged Portable X-Ray
MinXray TR90+ Tough Ray
Output 30–9 mA @ 40–90 kVDC — up to 30 mA via
HighBurst™
The Tough Ray is MinXray’s most robust design — five-layer high-durability paint, a ribbed shock-absorbing outer case, hard rubber impact bumpers, and a collimator with no interconnect to the tube so a knock to one doesn’t damage the other. HighBurst™ delivers up to 30 mA of power, and automatic voltage sensing keeps output clean even on the weak power found at farm calls.
Weight 14.1 lb (6.4 kg)
Ruggedization 5-layer paint, ribbed shock case, rubber
bumpers, isolated collimator
Power Automatic voltage input sensing & low
voltage compensation; 5-yr warranty
Battery Portable X-Ray
MinXray TR90B Battery Powered
Output 20–10 mA @ 40–90 kVDC; High Power Mode
+50% @ 82–90 kVDC
The ultimate in portability: all the Tough Ray ruggedness, running on quick-change lithium-ion batteries (two included) for hundreds of exposures per charge with no outlet in sight. A unique High Power Mode adds up to 50% more output at 82–90 kVDC settings when a big exam demands it.
Weight 15.1 lb (6.8 kg)
Battery Two quick-change lithium-ion packs included;
hundreds of exposures/charge
Warranty 3-year unit, 1-year batteries
bottom of page
